CS5
Wheel Alignment
TECHNICAL PARAMETERS
| Items | Camber | TOE | Caster | Kingpin(S.A.I.) | I.A | Setback | Thrust Angle | Wheel Offset | Axle Offset |
|---|---|---|---|---|---|---|---|---|---|
| Range | ±45° | ±30° | ±45° | ±45° | ±45° | ±20° | ±30° | — | — |
| Accuracy | ±1' | ±1' | ±1' | ±1' | ±1' | ±1' | ±1' | ±1mm | ±1mm |
| Operating Temperature | -30~50°C |
| Power Requirement | 100~120V(1Ph,50~60Hz) 190~240V(1Ph,50~60Hz) |
| Power Consumption | 300~350W |
| Size of Target | Front:134×134mm Rear:173x173mm |
| Ring Diameter(Four-point clamp) | 11~25" |
| Ring Diameter(Three-point clamp) | 11~25" |
| Track Width | 1220~2450mm |
| Wheelbase | 1600~5600mm |
| Rolling Compensation Style | Backward / Forward |
| Camera Resolution | 2592*1944 Single Camera(5.0M x2) |
| Distance from Camera to Turnplate | 1.5m ~ 3m |

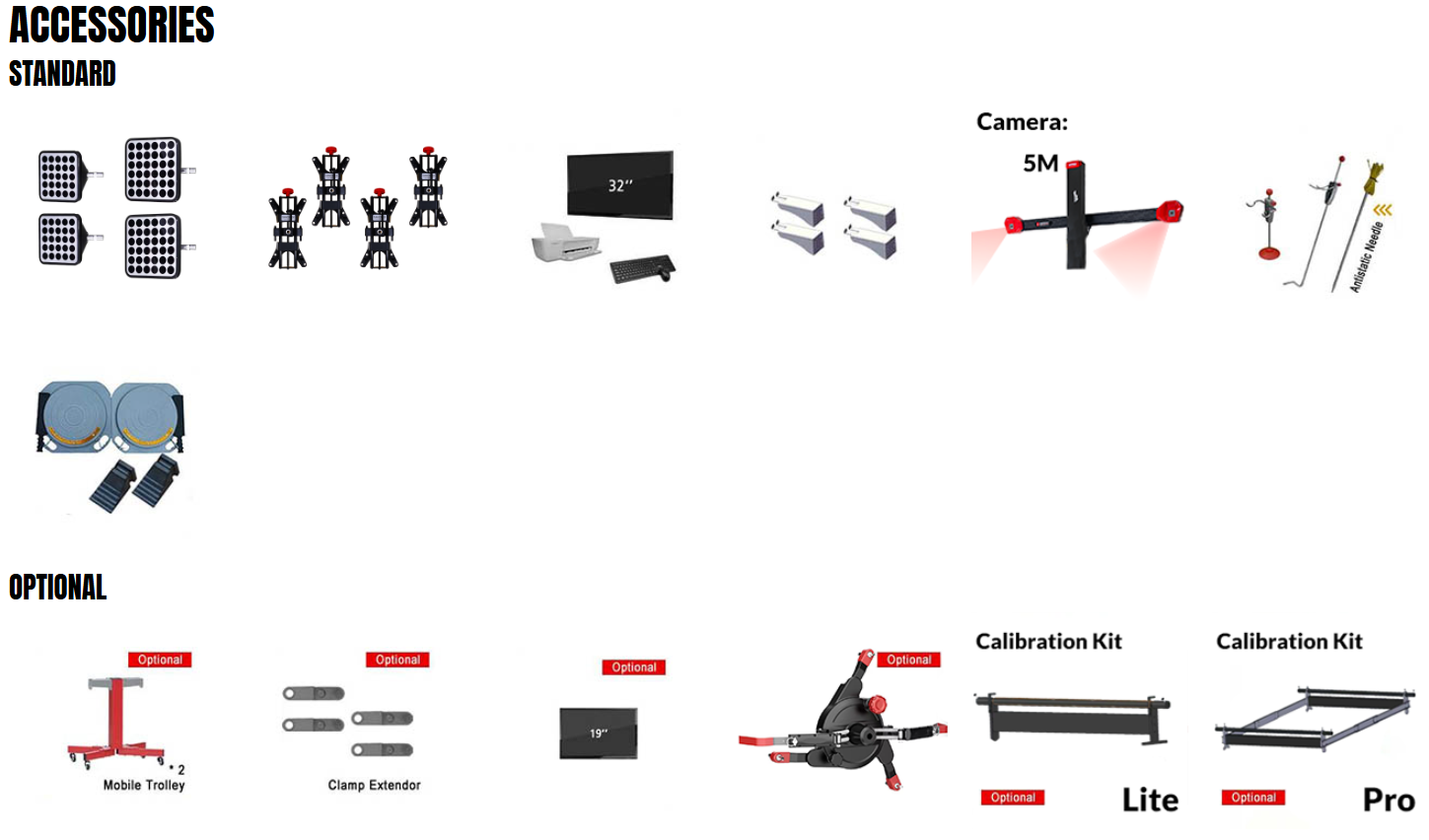

Available to pass “suspension clamping test” or “off-center clamp test”.
Measure in a low position and adjust in a high position, people and vehicles are safe
High pixel camera makes sure the image more clear an data more accurate, as well as supporting for smaller targets.
The image stabilization system reduces errors from operation and mechanical deformation,ensuring accurate measurements every time !
The drive on camera helps guide the proper parking of the vehicle to be aligned, ensuring safety and efficiency.
The voice broadcast makes your job easier,improve your working efficiency.
The wheel alignment software supports to use for the two post lift and mini scissor lift,meets more customers’ need.
The movable version is more convenient for different work station
